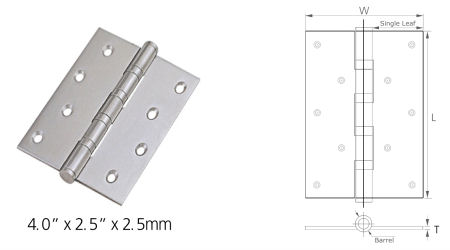

Without Bearing Stainless Steel Butt Hinges Flat Tip - Full Mortise

Hinge size in inches	Hinge size in mm	Width of single leaf		Barrel
L x W x T	L x W x T	inch	mm	inch	mm
3.0" x 2.0" x 2.0mm	76 x 52 x 2mm	0.75	20	7/16"	12
3.0" x 2.5" x 2.0mm	76 x 64 x 2mm	1.00	21	7/16"	12
4.0" x 3.0" x 2.0mm	102 x 76 x 2mm	1.25	31	7/16"	12
4.0" x 3.0" x 2.5mm	102 x 76 x 2.5mm	1.25	31	9/16"	14
4.0" x 2.5" x 2.5mm	102 x 64 x 2.5mm	1.00	25	9/16"	14
5.0" x 3.0" x 2.5mm	127 x 64 x 2.5mm	1.00	25	9/16"	14
5.0" x 3.5" x 2.5mm	127 x 76 x 2.5mm	1.25	31	9/16"	14

Without Bearing Stainless Steel Butt Hinges Full Mortise - Butt hinges the most common type of hinges. It is a hinge with two rectangular metal plates with screw holes joined by either a pin or rod. Butt hinges are used for mounting ordinary doors.

We specialize in the manufacturing of a variety of high quality stainless steel hinges - ball bearing hinges, continuous hinges/piano hinges, door hinges, butt hinges, flap hinges, rising and falling hinges, spring hinges, flush hinges, parliament hinges, residential hinges, Nylon washer hinges, custom designed hinges and stainless steel ball bearing hinges which is also our premium product.
